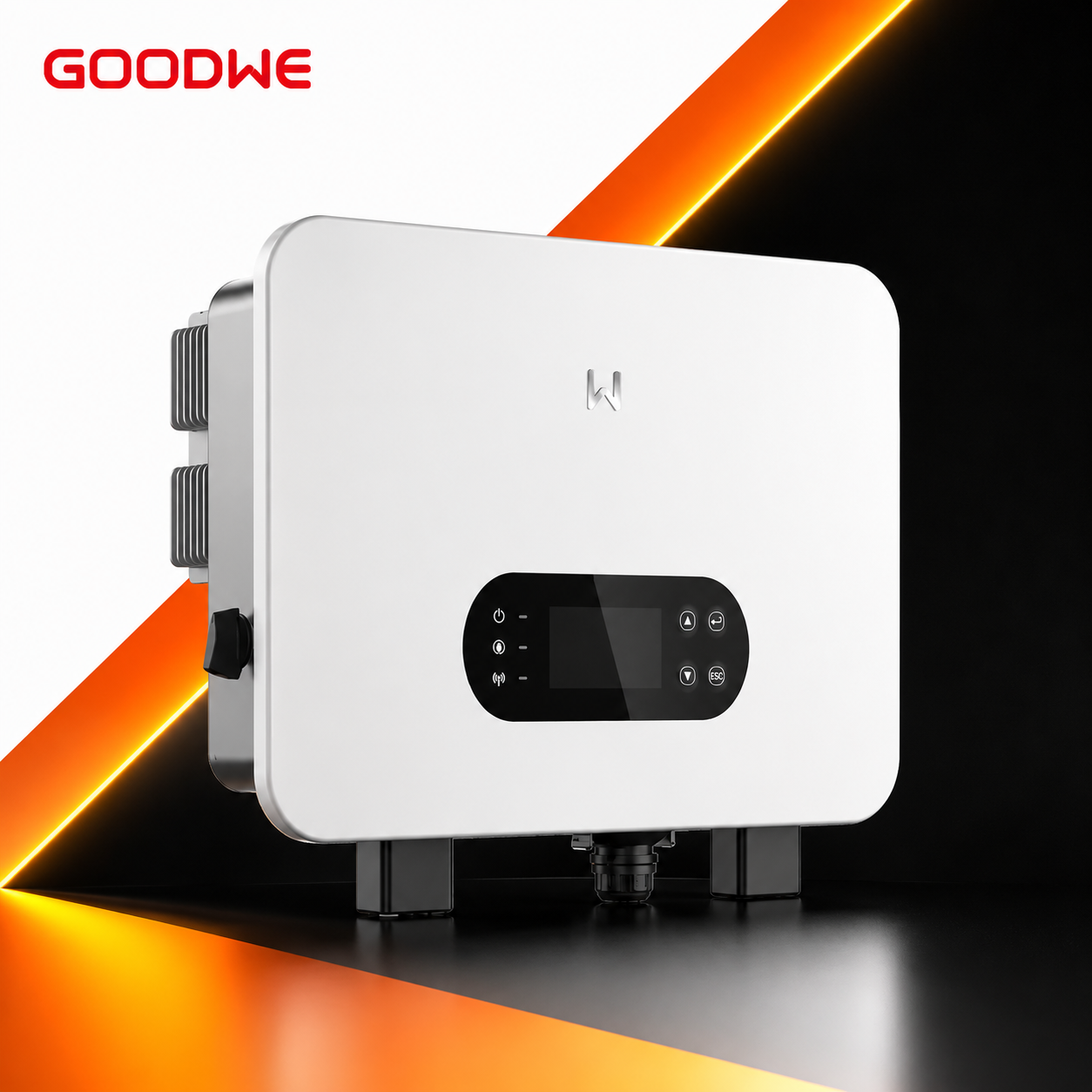

GoodWe GW10K-ES-C10 10kW Single Phase Multi-MPPT Hybrid Solar Inverter

Name: GoodWe GW10K-ES-C10 10kW Single Phase Multi-MPPT Hybrid Solar Inverter
Brand: GoodWe
SKU: ZEN-INV-1091
Price: 249500 BDT
Availability: InStock

0 Rating (0 customer reviews)

৳ 249,500৳ 270,000

10kW single-phase hybrid inverter featuring 2/2 multi-string MPPT inputs and smart fan cooling.

১০০% জেনুইন মালামালের নিশ্চয়তা

Nationwide Courier Insured

5 Years Standard Warranty

30-Day Technical Call Support

Quantity

Buy Now on WhatsApp / হোয়াটসঅ্যাপে সরাসরি কিনুন

Product Technical Description & Specifications

Product Overview

Designed for heavy single-phase power demands, the GoodWe GW10K-ES-C10 provides 10kW continuous AC output with battery storage integration. Equipped with 2/2 dual-string MPPT inputs and reaching 97.6% maximum efficiency, it handles larger solar arrays. Smart fan thermal management keeps temperature stable, while IP66 housing enables outdoor installation.

Zener Authenticity Promise: All sitemarks, models, and technical statistics are registered with the factory and verified in our physical laboratory before sale.

Data Specifications

PhaseSingle Phase (L/N/PE)

Weight29.0 kg

CommunicationWi-Fi / LAN / RS485 / CAN

Cooling MethodSmart Fan Cooling

Max. Efficiency97.6%

Start-up Voltage58 V

Nominal Power Output10.0 kW

Backup Switching Time< 4 ms (UPS Level)

Battery Voltage Range40 V – 60 V

Max. DC Input Voltage600 V

Integrated ProtectionsAnti-Islanding, PV Reverse Polarity, Insulation Resistance, Residual Current Unit, Output Overcurrent

Number of MPP Trackers2/2 (Dual String per MPPT)

Nominal Battery Voltage48 V

Dimensions (W × H × D)560 × 510 × 225 mm

Ingress Protection RatingIP66

Max. Recommended PV Power20.0 kW (200% DC Oversizing)

Nominal AC Output Voltage220 V / 230 V / 240 V

Max. Input Current per MPPT20 A / 20 A

Operating Temperature Range-25°C to +60°C

MPPT Operating Voltage Range60 V – 550 V

Max. Continuous Charging / Discharging Current190 A / 190 A
