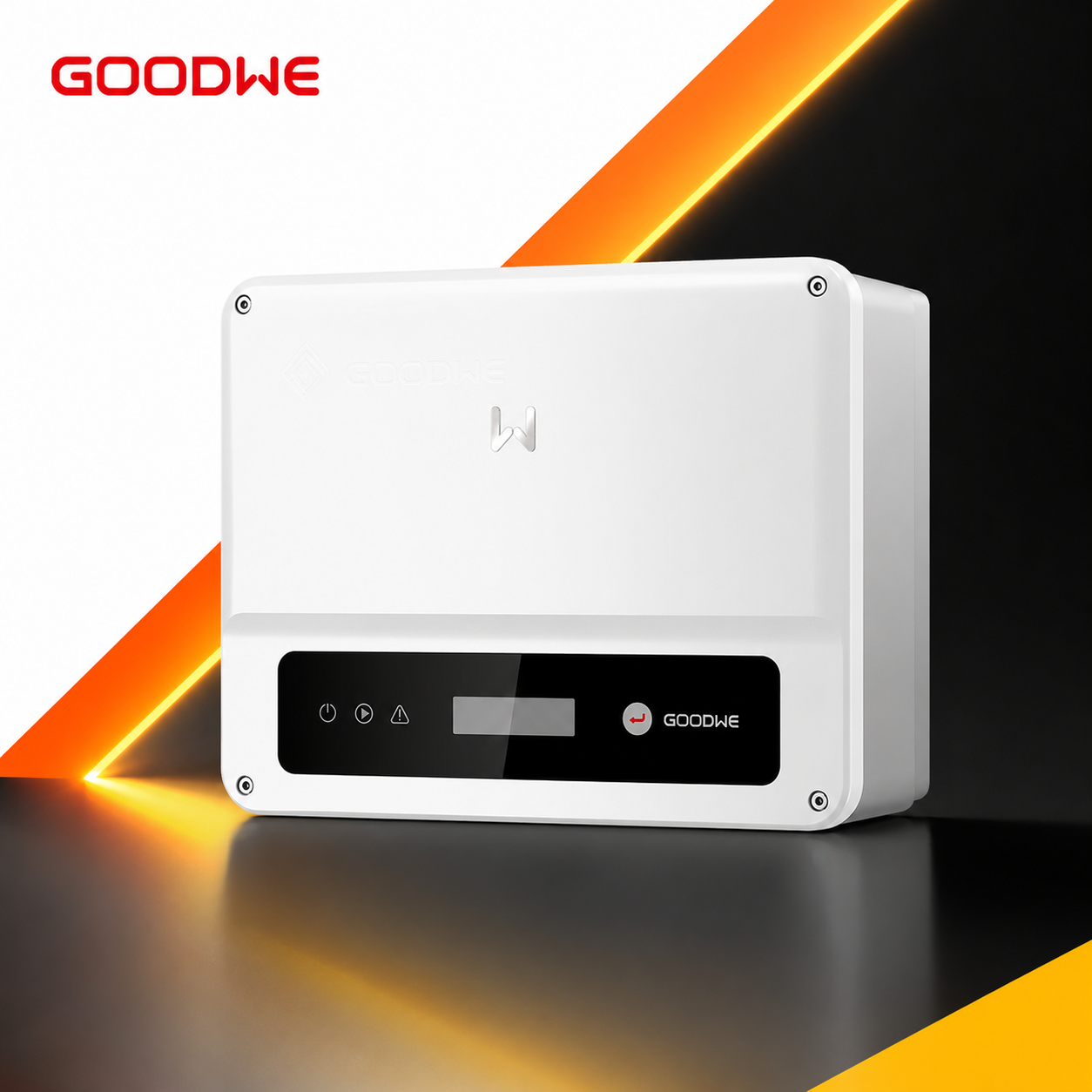

GoodWe GW3000-XS-30 3kW Single Phase Single MPPT On-Grid Solar Inverter

Name: GoodWe GW3000-XS-30 3kW Single Phase Single MPPT On-Grid Solar Inverter
Brand: GoodWe
SKU: ZEN-GoodWe-1017
Price: 40500 BDT
Availability: InStock

0 Rating (0 customer reviews)

৳ 40,500৳ 47,500

Compact 3kW single-phase grid-tied inverter delivering 97.6% max efficiency for standard rooftops.

১০০% জেনুইন মালামালের নিশ্চয়তা

Nationwide Courier Insured

5 Years Replacement Warranty

30-Day Technical Call Support

Quantity

Buy Now on WhatsApp / হোয়াটসঅ্যাপে সরাসরি কিনুন

Product Technical Description & Specifications

Product Overview

The GoodWe GW3000-XS-30 is a 3kW single-phase grid-tied solar inverter designed for standard home installations. It delivers up to 97.6% efficiency and supports up to 200% DC input oversizing. Featuring natural convection cooling, it operates silently without moving mechanical fans. Its IP66-rated casing protects against outdoor elements.

Zener Authenticity Promise: All sitemarks, models, and technical statistics are registered with the factory and verified in our physical laboratory before sale.

Data Specifications

PhaseSingle Phase (L/N/PE)

Weight4.6 kg

TopologyTransformerless (Non-Isolated)

CommunicationWi-Fi / LAN / RS485

Cooling MethodNatural Convection (Fanless, <20 dB)

Max. Efficiency97.6%

Start-up Voltage50 V

Surge ProtectionType II DC & Type II AC

Max. Output Current14.3 A

Max. DC Input Voltage600 V

Nominal Input Voltage360 V

Integrated ProtectionsPV Reverse Polarity, Anti-Islanding, AC Overcurrent, AC Short Circuit, Residual Current Monitoring, Insulation Detection

Number of MPP Trackers1.0

Night Power Consumption< 1 W

Nominal AC Output Power3.0 kW

Dimensions (W × H × D)295 × 230 × 113 mm

Ingress Protection RatingIP66

Max. Recommended PV Power6.0 kW (200% DC Oversizing)

Nominal AC Grid Frequency50 Hz / 60 Hz

Nominal AC Output Voltage220 V / 230 V / 240 V

Max. Input Current per MPPT16 A

Operating Temperature Range-25°C to +60°C

European Weighted Efficiency97.2%

MPPT Operating Voltage Range40 V – 550 V

Max. Short Circuit Current per MPPT22 A
