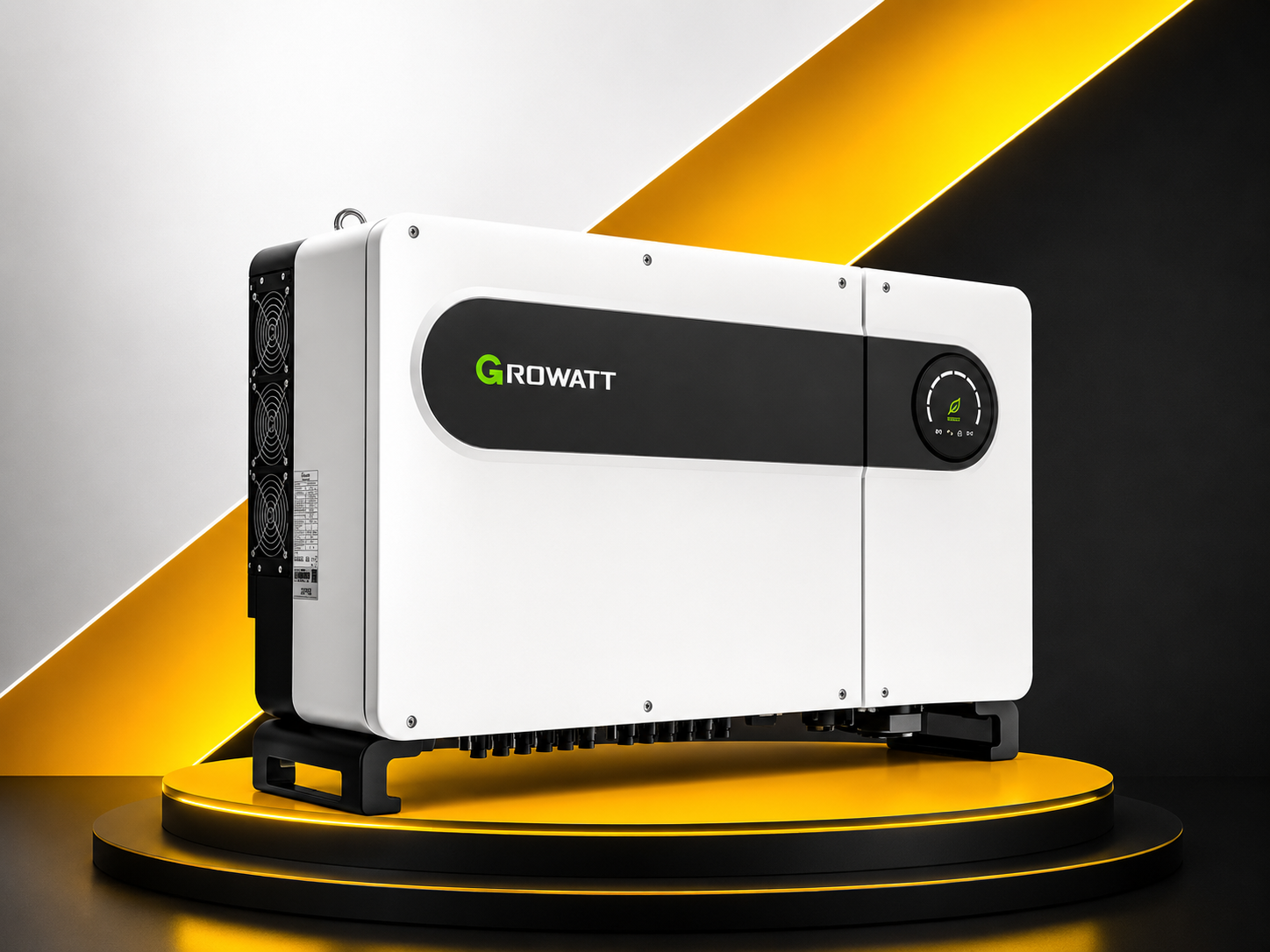

Growatt MAX 100KTL3-X LV 100kW Three-Phase On-Grid Solar Inverter

Name: Growatt MAX 100KTL3-X LV 100kW Three-Phase On-Grid Solar Inverter
Brand: Growatt
SKU: GRW-MAX100KTL3-X-LV
Price: 519000 BDT
Availability: InStock

0 Rating (0 customer reviews)

৳ 519,000৳ 579,999

100kW three-phase commercial on-grid solar inverter with 10 MPPTs, 98.8% efficiency, IP66 protection, and intelligent monitoring.

১০০% জেনুইন মালামালের নিশ্চয়তা

Nationwide Courier Insured

2 Years Replacement Warranty

30-Day Technical Call Support

Quantity

10 available

Buy Now on WhatsApp / হোয়াটসঅ্যাপে সরাসরি কিনুন

Product Technical Description & Specifications

Product Overview

The Growatt MAX 100KTL3-X LV 100kW Three-Phase On-Grid Solar Inverter is a premium commercial and industrial (C&I) inverter engineered for large-scale solar power plants, factories, warehouses, shopping malls, hospitals, educational institutions, and utility-grade installations. Featuring 10 independent MPPT trackers, high conversion efficiency, intelligent string monitoring, AFCI protection, and an IP66-rated enclosure, it maximizes energy harvest while ensuring reliable, safe, and long-term operation. The inverter supports advanced remote monitoring and comprehensive protection functions, making it an ideal solution for high-capacity grid-connected photovoltaic systems.

Zener Authenticity Promise: All sitemarks, models, and technical statistics are registered with the factory and verified in our physical laboratory before sale.

Data Specifications

THDi<3%

BrandGrowatt

ModelMAX 100KTL3-X LV

PhaseThree Phase

Weight84 kg

DisplayLED Indicators + Bluetooth App Configuration

Dimensions970 × 640 × 345 mm

ProtectionDC Reverse Polarity Protection, Anti-Islanding Protection, AC/DC Type II SPD, AFCI, PID Recovery (Optional), Ground Fault Monitoring, Residual Current Monitoring, Short Circuit Protection

Power Factor0.8 Leading to 0.8 Lagging

CommunicationRS485, WiFi, LAN, 4G (Optional)

Inverter TypeThree-Phase On-Grid Solar Inverter

MPPT Trackers10

Cooling MethodSmart Air Cooling

Grid Frequency50Hz / 60Hz

Start-up Voltage250V

Strings per MPPT2

Country of OriginChina

Protection RatingIP66

AC Nominal Voltage230V/400V, 240V/415V

MPPT Voltage Range180V–1000V

Maximum DC Voltage1100V

Maximum Efficiency98.8%

Nominal DC Voltage600V

Rated Output Power100000W

European Efficiency98.5%

Operating Temperature-30°C to +60°C

Maximum Output Current160A

Maximum Recommended PV Power150000W

Maximum Input Current per MPPT32A

Maximum Short Circuit Current per MPPT40A
